CyBox AP 2-W

Wi-Fi access point with IEEE 802.11ac and performance boost due to faster CPU. Compliant with EN 50155.

Faster Wi-Fi

Faster Wi-Fi

Future-proof with 10 GbE option

10 GbE

Fast 1.3 Gbps

1.3 Gbps


11ac
with
1.3 Gbit/s

A faster CPU now enables the full throughput of 1.3 Gbps of the Wi-Fi standard IEEE 802.11ac with 3 x 3 MIMO. When using two Wi-Fi modules, the bandwidth is even doubled to up to 2.6 Gbps. The wireless access point is backwards compatible with the Wi-Fi standard IEEE 802.11n for older devices and a longer range.


The increased throughput now also requires a faster backbone, which can be equipped with 2.5 Gbps or optical 10 Gbps data throughput. The 2.5 Gigabit Ethernet interface is ideal for retrofit programs with existing cabling, the fiber optic option mainly addresses new infrastructures.

2.5 GbE
or
10 GbE


2.4 GHz
and
5 GHz

Dual radio version with 2.4 GHz and 5 GHz standard. 11ac can be used at 5 GHz and 11n at 2.4 GHz for older end devices and at the same time a longer range.


The integrated ultra-wide-range power supply is fully compliant with EN 50155, Class S2 and tolerates interruptions of up to 10 ms. As an option, power can be supplied via Power-over-Ethernet (PoE).

24 - 110 VDC
or
PoE


Daisy Chaining

For long backbone distances daisy chaining can be applied by bridging two Ethernet interfaces eliminating the costs for external switches.


The optionally available bypass function ensures signal transmission within the backbone even if one of the access points connected in series fails.

Cold Bypass


Web Interface

Easy-to-use web interface for remote configuration of the access points, monitoring of settings, and for installing updates.


A configurable firewall protects personal data of client devices against unauthorized access (client isolation) and supports the secure and interference-free data exchange with the Internet.

Cyber Security


EN 50155

The access point is designed according to the international standard EN 50155. Components have to meet the strictest environmental requirements, e.g. an extended temperature range. In addition, they must be resilient to shocks and vibrations.

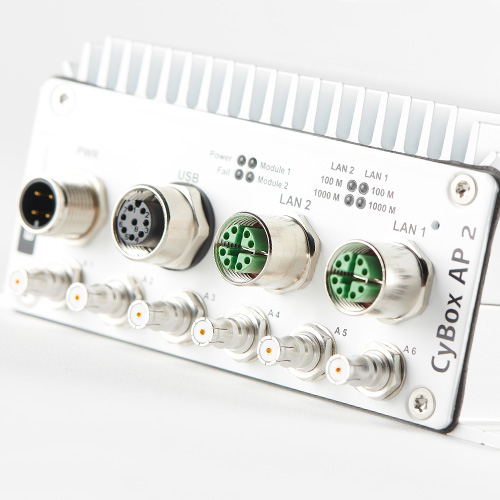

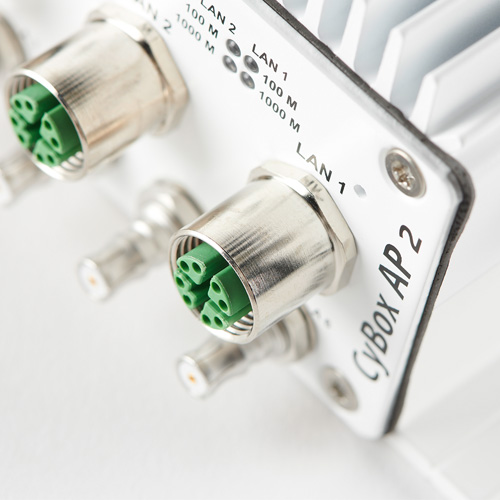

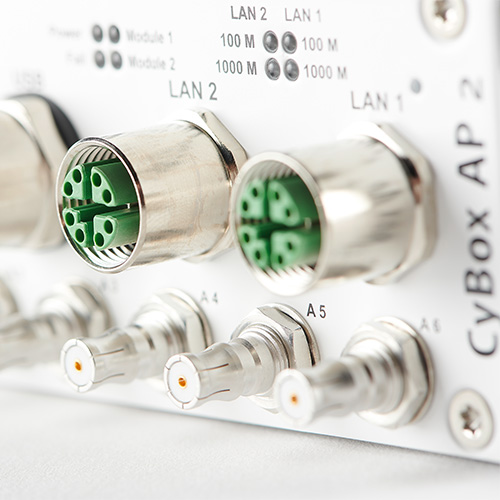

Wi-Fi Access Point CyBox AP 2 - Wireless Access Point with IEEE 802.11ac and 3 x 3 MIMO
Wi-Fi Access Point CyBox AP 2 - Wireless Access Point with IEEE 802.11ac and 3 x 3 MIMO
Wi-Fi Access Point CyBox AP 2 - Wireless Access Point with IEEE 802.11ac and 3 x 3 MIMO

Further Technical Data

  • 2 Ethernet Interfaces with 1 Gbps + 1/2.5/10 Gbps
  • USB port
  • Simple Network Management Protocol (SNMP)
  • QLS antenna connections
  • IP40 aluminium housing for wall mounting
  • Housing dimensions 105 × 55 × 205 mm
  • Weight 1200 g
  • Temperature range -40 °C to + 85°C

Software

  • Open source software OpenWrt
  • WAN manager for coordinating multiple LTE/WLAN connections
  • OpenVPN tunneling
  • Link Aggregation (LACP)
  • Quality of Service (QoS)
  • ARP filter - no man-in-the-middle attacks
  • Optional secure boot

Wi-Fi router for high-speed trains
Wi-Fi router for intercity trains
Wi-Fi router for trams
Not qualified for buses

Your Advantages

256 Clients

Highest performance on smallest footprint: Up to 256 clients per access point

Lifecycle Management

Every generation in the same footprint for scalability and long-term availability

Worldwide Use

Country-specific Wi-Fi standards for worldwide use in every type of train

90+ Clients

Simultaneous, uninterrupted live video streaming for more than 90 clients

Load Balancing

Intelligent distribution of clients to access points and fair bandwidth distribution

Fast Roaming

Smooth, lossless roaming from access point to access point

Web Interface

Easy-to-use web interface for remote settings and updates

Backbone Routing

Fail-safe routing via embedded relays

Made in Germany

Designed and manufactured in Germany


Variants

CYAPW-1055CYAPW-1054CYAPW-1053CYAPW-1050
2 x Wi-Fi 2 x Wi-Fi 2 x Wi-Fi 2 x Wi-Fi
IEEE 802.11ac IEEE 802.11ac IEEE 802.11ac IEEE 802.11ac
1300 Mbps 1300 Mbps 1300 Mbps 1300 Mbps
1 + 10 Gigabit Ethernet 1 + 2.5 Gigabit Ethernet 1 + 1 Gigabit Ethernet 1 + 1 Gigabit Ethernet
M12, X-coded / SFP M12, X-coded M12, X-coded M12, X-coded
Dual-Core CPU 1.2 Ghz Dual-Core CPU 1.2 Ghz Dual-Core CPU 1.2 Ghz Dual-Core CPU 1.2 Ghz
1 GB RAM 1 GB RAM 1 GB RAM 1 GB RAM
128 MB Flash 128 MB Flash 128 MB Flash 128 MB Flash
24 - 110 VDC 24 - 110 VDC 24 - 110 VDC 24 - 110 VDC
PoE PoE - PoE
- - Bypass Relay -

Downloads


Accessories

  • Antennas
  • Adapters
  • Cables
  • Power supply

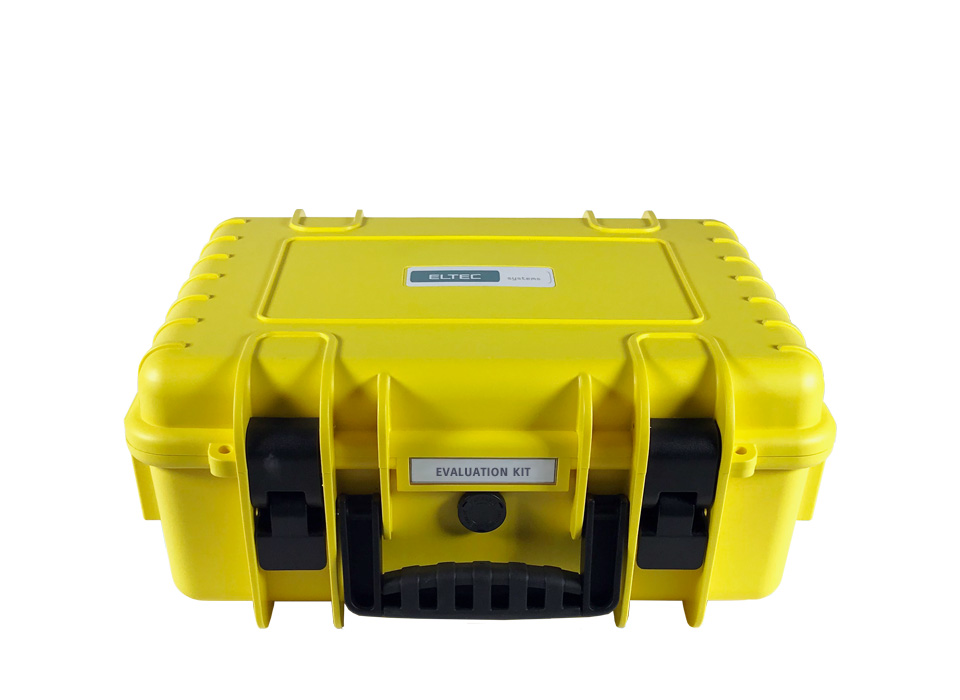

Evaluation Kit

Evaluation kit for wireless access point CyBox AP 2-W

Wireless Access Point

CYAPW-1050

including all necessary accessories

  • Antennas
  • Adapters
  • Cabels
  • Power supply
