Ibex-A2510

Railway 11ax Wi-Fi access point with integrated compact antenna from HUBER+SUHNER for optimized small cell communication. Compliant with EN 50155.

Fast Wi-Fi

Fast Wi-Fi

Future-proof with integrated antenna

Integrated antenna

Fast 4.8 Gbps

4.8 Gbps


Integrated Antenna

Easy-to-install, compact device with SENCITY® Rail ACTIVE antenna from HUBER+SUHNER without visible cables and connectors for a sleek, elegant look. Ideal for setting up Small Cell solutions with multiple access points in the car for significantly increased data throughput per passenger. Redundant Wi-Fi networks increase operational reliability.


The highly integrative solution limits the number of RF cables in the train and losses through the RF cables are reduced to a minimum. In addition to the data connection, a single Ethernet cable also handles the PoE power supply.

Easy Installation


Wi-Fi 6
with
3.6 Gbps

The multi-user MIMO (3x3 MU-MIMO per Wi-Fi interface) according to Wi-Fi standard IEEE 802.11ax enables even faster surfing. This increases the previous maximum throughput to 3.6 Gbps with three streams per module and when used simultaneously in the 2.4 and 5 GHz range up to 4.4 Gbps. The wireless access point is backwards compatible with Wi-Fi standards IEEE 802.11a/b/g/n/ac for older end devices and a longer range.


Dual radio version with 2.4 GHz and 5 GHz standard. 802.11ax uses the 5 GHz band and is backwards compatible with 802.11n with 5 GHz and 2.4 GHz for older end devices.

2.4 GHz
and
5 GHz


PoE+

Power is supplied via Power-over-Ethernet (PoE+).


Easy-to-use web interface for easy remote configuration of the access points, monitoring of settings, and for installing updates. Maintenance and monitoring of the devices via remote control systems are also possible with SNMP and shell scripts.

Web and Remote Interface


Cyber Security

A configurable firewall protects personal data of client devices against unauthorized access (client isolation) via multi-level client/AP isolation and supports the secure and interference-free data exchange with the Internet. Unauthorized access is prevented both to end devices that have dialed into the same access point and across devices to end devices that are logged into different Westermo Eltec access points.


The access point is designed according to the international standard EN 50155. Components have to meet the strictest environmental requirements, e.g. an extended temperature range. In addition, they must be resilient to shocks and vibrations.

EN 50155

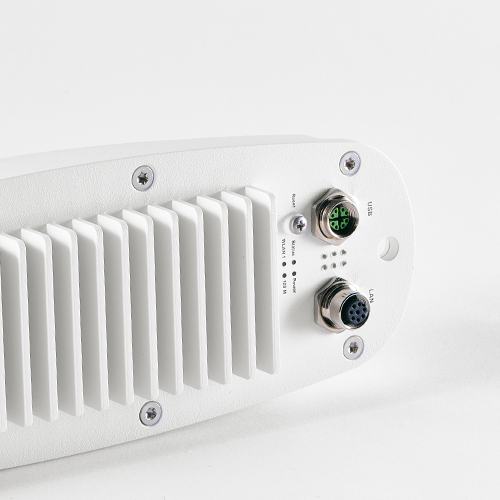

Wi-Fi Access Point Ibex-A2510 - Wireless Access Point with IEEE 802.11ax and 3 x 3 MIMO and integrated antenna

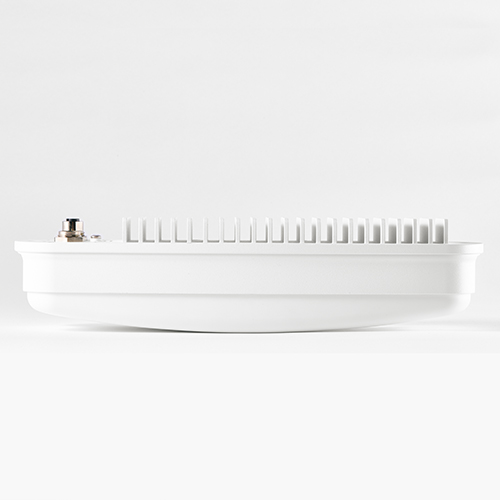

Wi-Fi Access Point Ibex-A2510 - Wireless Access Point with IEEE 802.11ax and 3 x 3 MIMO and integrated antenna

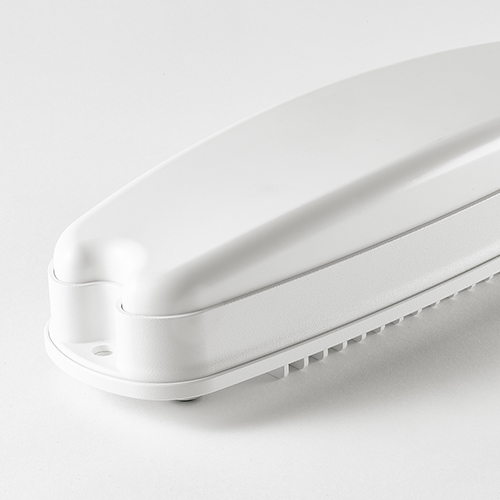

Wi-Fi Access PointWi-Fi Access Point Ibex-A2510 - Wireless Access Point with IEEE 802.11ax and 3 x 3 MIMO and integrated antenna

Further Technical Data

  • Ethernet interfaces with 1 Gbps
  • Powered over PoE+
  • USB-/RS232- interface (Service)
  • Simple Network Management Protocol (SNMPv3)
  • Robust IP54 aluminium housing for wall or roof mounting
  • Housing dimensions 288 × 99 × 69 mm
  • Weight up to 1200 g
  • Temperature range -40 °C to + 70 °C (85°C)

Software

  • Open source software OpenWrt
  • WAN manager for coordinating multiple WLAN connections
  • Multi-level client/AP isolation
  • OpenVPN tunneling
  • Link Aggregation (LACP)
  • Quality of Service (QoS)
  • ARP filter - no man-in-the-middle attacks
  • Optional secure boot

Wi-Fi access point for high-speed trains
Wi-Fi access point for intercity trains
Wi-Fi access point for trams
Not qualified for buses

Your Advantages

1024 Clients

Highest performance on smallest footprint: Up to 1024 clients per access point

Lifecycle Management

Every generation in the same footprint for scalability, long-term availability and easy upgrades

Worldwide Use

Country-specific Wi-Fi standards for worldwide use in every type of train

100+ Clients

Simultaneous, uninterrupted live video streaming for more than 100 clients

Load Balancing

Intelligent distribution of clients to access points and fair bandwidth distribution

Fast Roaming

Smooth, lossless roaming from access point to access point

Web Interface

Easy-to-use web interface for remote settings and updates

Backbone Routing

Fail-safe routing via embedded relays

Made in Germany

Designed and manufactured in Germany


Variants

Ibex-A2510
2 x Wi-Fi
IEEE 802.11ax
up to 3600 Mbps
1 Gigabit Ethernet
M12, X-coded
Dual-Core CPU 1.2 GHz
1 GB RAM
128 MB Flash
PoE+
