CyBox GW-P

Wireless gateway with five slots for a variety of Wi-Fi and LTE module combinations with link aggregation and integrated SSD for storing media content. Compliant with EN 50155.

Fast LTE/Wi-Fi

Fast LTE | Wi-Fi

Fast 1.5 Gbps

1.5 Gbps LTE

Fast 1.7 Gbps

1.7 Gbps Wi-Fi


LTE Cat 6

The gateway supports LTE Cat 6 with download speeds up to 300 Mbps and 50 Mbps upload speed. When using five LTE modules in parallel the bandwidth will be increased up to 1.5 Gbps. Four SIM sockets per LTE interface offer multi-provider support or least cost routing.


The multi-user MIMO (MU-MIMO) according to Wi-Fi standard IEEE 802.11ac Wave 2 enables even faster surfing. This increases the maximum throughput from 1.3 Gbps to 1.7 Gbps with four streams. In addition to the optional Wave 2 module, up to four 11ac modules with 3x3 MIMO can be added. The modules are backwards compatible with Wi-Fi standard IEEE 802.11n.

11ac Wave 2
with
1.7 Gbps


2.4 GHz
and
5 GHz

Dual radio version with 2.4 GHz and 5 GHz standard. 802.11ac uses the 5 GHz band and is backwards compatible with 802.11n with 5 GHz and 2.4 GHz for older end devices.


Two free sockets allow specific I/O extensions for vehicle buses such as CAN and MVB. Further modules for IBIS, RS232, RS485, ODB2 or digital I/O will follow

I/O


SSD

An optional internal SSD in the m.2 form factor enables storage and access to local data such as timetable information, videos, etc.


The integrated ultra-wide-range power supply is fully compliant with EN 50155, Class S2 and tolerates interruptions of up to 10 ms.

24 - 110 VDC


Daisy Chaining

For long backbone distances daisy chaining can be applied by bridging two Ethernet interfaces eliminating the costs for external switches.


The optionally available bypass function ensures signal transmission within the backbone even if one of the gateways connected in series fails.

Cold Bypass


Web and Remote Interface

Easy-to-use web interface for easy remote configuration of the gateway, monitoring of settings, and for installing updates. Maintenance and monitoring of the devices via remote control systems are also possible with SNMP and shell scripts.


A configurable firewall protects personal data of client devices against unauthorized access (client isolation) and supports the secure and interference-free data exchange with the Internet. Unauthorized access is prevented both to end devices that have dialed into the same access point and across devices to end devices that are logged into different ELTEC access points.

Cyber Security


EN 50155

The wireless gateway is designed according to the international standard EN 50155. Components have to meet the strictest environmental requirements, e.g. an extended temperature range. In addition, they must be resilient to shocks and vibrations.

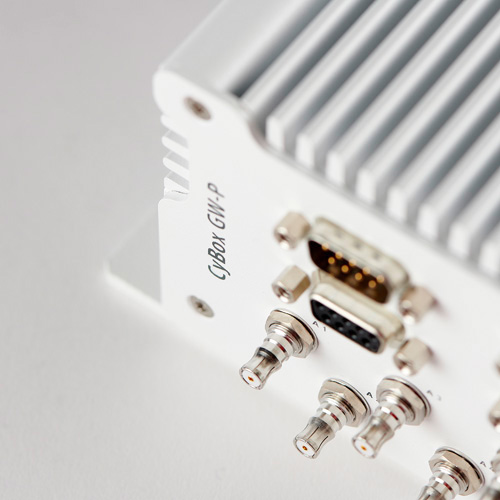

CyBox GW-P - Wireless Gateway with 5 LTE and Wi-Fi modules and SSD

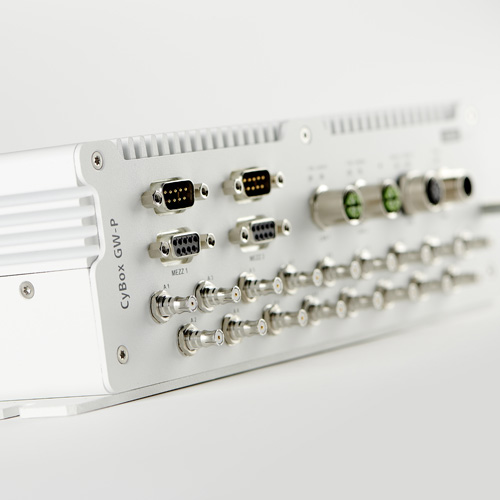

CyBox GW-P - Wireless Gateway with 5 LTE and Wi-Fi modules and SSD

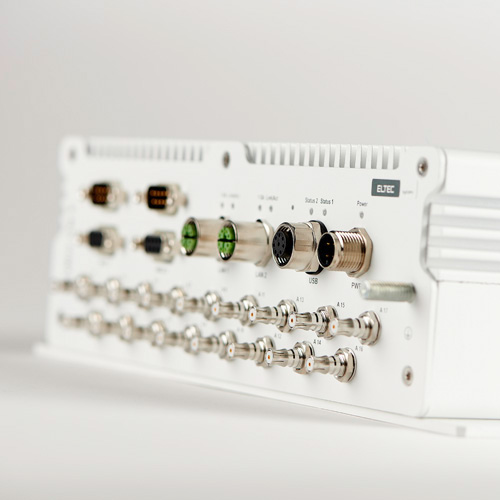

CyBox GW-P - Wireless Gateway with 5 LTE and Wi-Fi modules and SSD

Further Technical Data

  • 2 Ethernet interfaces with 1 Gbps
  • Optional up to 960 GB SSD
  • Integrated GPS receiver
  • USB/RS232 port
  • Simple Network Management Protocol (SNMP)
  • QLS antenna connections
  • IP40 aluminium housing for wall mounting
  • Housing dimensions 251 × 76 × 246 mm
  • Weight up to 4250 g
  • Temperature range -40 °C to + 85°C

Software

  • Open source software OpenWrt
  • WAN manager for coordinating multiple LTE/WLAN connections
  • OpenVPN tunneling
  • Link Aggregation (LACP)
  • Quality of Service (QoS)
  • ARP filter - no man-in-the-middle attacks
  • Optional secure boot

Wireless gateway for high-speed trains
Wireless gateway for intercity trains
Wireless gateway for trams
Not qualified for buses

Your Advantages

LTE-to-WiFi

Gateway with optional storage medium as media source

Lifecycle Management

Every generation in the same footprint for scalability, long-term availability and easy upgrades

Worldwide Use

Country-specific LTE/Wi-Fi standards for worldwide use in every type of train

GPS

Integrated GPS receiver for vehicle tracking

Load Balancing

Intelligent distribution of clients to access points and fair bandwidth allocation

Fast Roaming

Smooth and loss-free from access point to access point

1024 Clients

Highest performance on smallest footprint: Up to 1024 clients per access point

90+ Clients

Simultaneous, uninterrupted live video streaming for more than 90 clients

Made in Germany

Designed and manufactured in Germany


Variants

CYGWP-1150CYGWP-1132CYGWP-1131CYGWP-1130CYGWP-1051CYGWP-1050CYGWP-1031CYGWP-1030CYGWP-1010
2 x LTE + 2 x Wi-Fi + 1 x Wave 2 4 x LTE + 1 x Wi-Fi Wave 2 5 x LTE 4 x LTE + 1 x Wi-Fi Wave 2 3 x LTE + 2 x Wi-Fi 2 x LTE + 2 x Wi-Fi + 1 x  Wave 2 3 x LTE + 2 x Wi-Fi 3 x LTE + 2 x Wi-Fi 4 x LTE + 1 x Wi-Fi
LTE Cat 6
with 300 Mbps
LTE Cat 6
with 300 Mbps
LTE Cat 6
with 300 Mbps
LTE Cat 6
with 300 Mbps
LTE Cat 6
with 300 Mbps
LTE Cat 6
with 300 Mbps
LTE Cat 6
with 300 Mbps
LTE Cat 6
with 300 Mbps
LTE Cat 6
with 300 Mbps
IEEE 802.11ac
with 1300 Mbps
+ Wave 2
with 1700 Mbps
IEEE 802.11ac Wave 2
with 1700 Mbps
- IEEE 802.11ac Wave 2
with 1700 Mbps
IEEE 802.11ac
with 1300 Mbps
IEEE 802.11ac
with 1300 Mbps
+ Wave 2
with 1700 Mbps
IEEE 802.11ac
with 1300 Mbps
IEEE 802.11ac
with 1300 Mbps
IEEE 802.11ac
with 1300 Mbps
1 + 1 GbE 1 + 1 GbE 1 + 1 GbE 1 + 1 GbE 1 + 1 GbE 1 + 1 GbE 1 + 1 GbE 1 + 1 GbE 1 + 1 GbE
M12, X-coded M12, X-coded M12, X-coded M12, X-coded M12, X-coded M12, X-coded M12, X-coded M12, X-coded M12, X-coded
Octa-Core CPU
1.8 GHz
Octa-Core CPU
1.8 GHz
Octa-Core CPU
1.8 GHz
Octa-Core CPU
1.8 GHz
Quad-Core CPU
1.4 GHz
Quad-Core CPU
1.4 GHz
Quad-Core CPU
1.4 GHz
Quad-Core CPU
1.4 GHz
Quad-Core CPU
1.4 GHz
4 GB RAM 4 GB RAM 4 GB RAM 4 GB RAM 4 GB RAM 4 GB RAM 2 GB RAM 2 GB RAM 2 GB RAM
256 MB Flash 256 MB Flash 256 MB Flash 256 MB Flash 256 MB Flash 256 MB Flash 256 MB Flash 256 MB Flash 256 MB Flash
- - - - 480 GB SSD 480 GB SSD 120 GB SSD - 120 GB SSD
24 - 110 VDC 24 - 110 VDC 24 - 110 VDC 24 - 110 VDC 24 - 110 VDC 24 - 110 VDC 24 - 110 VDC 24 - 110 VDC 24 - 110 VDC
GNSS GNSS GNSS GNSS GNSS GNSS GNSS GNSS GNSS
15 x QLS 13 x QLS 11 x QLS 13 x QLS 13 x QLS 15 x QLS 13 x QLS 13 x QLS 12 x QLS

Downloads

Accessories

  • Antennas
  • Adapters
  • Cables
  • Power supply

Evaluation Kit

Evaluation Kit for Wireless Gateway CyBox GW-P

Wireless Gateway

CYGWP-1031

with 3 x LTE, 2 x Wi-Fi, 120 GB SSD and Quad-Core CPU
including all necessary accessories

  • Antennas
  • Adapters
  • Cabels
  • Power supply
