Routers and gateways > Cybox lte 2 w

CyBox LTE 2-W

Dual LTE router with LTE Cat 6 or IEEE 802.11ac and performance boost through faster CPU. Compliant with EN 50155.

Faster LTE/Wi-Fi

Faster LTE | Wi-Fi

Future-proof with 10 GbE option

10 GbE

Fast 1.3 Gbps

1.3 Gbps


The router supports LTE Cat 6 with download speeds up to 300 Mbps and 50 Mbps upload speed. When using two LTE modules, the bandwidth is even doubled to up to 600 Mbps. Four SIM sockets per LTE interface offer multi-provider support or least cost routing.

LTE Cat 6


11ac
with
1.3 Gbps

A faster CPU now enables the full throughput of 1.3 Gbps of the optionally integrated IEEE 802.11ac Wi-Fi module  with 3 x 3 MIMO. The wireless access point is backwards compatible with the Wi-Fi standard IEEE 802.11n for older devices and a longer range.


The increased throughput now also requires a faster backbone, which can be equipped with 2.5 Gbps or optical 10 Gbps data throughput. The 2.5 Gigabit Ethernet interface is ideal for retrofit programs with existing cabling, the fiber optic option mainly addresses new infrastructures.

2.5 GbE
or
10 GbE


2.4 GHz
and
5 GHz

Dual radio version with 2.4 GHz and 5 GHz standard. 11ac can be used at 5 GHz and 11n at 2.4 GHz for older end devices and at the same time a longer range.


The integrated ultra-wide-range power supply is fully compliant with EN 50155, Class S2 and tolerates interruptions of up to 10 ms. As an option, power can be supplied via Power-over-Ethernet (PoE).

24 - 110 VDC
or
PoE


Daisy Chaining

For long backbone distances daisy chaining can be applied by bridging two Ethernet interfaces eliminating the costs for external switches.


The optionally available bypass function ensures signal transmission within the backbone even if one of the access points connected in series fails.

Cold Bypass


Web Interface

Easy-to-use web interface for remote configuration of the access points, monitoring of settings, and for installing updates.


A configurable firewall protects personal data of client devices against unauthorized access (client isolation) and supports the secure and interference-free data exchange with the Internet.

Cyber Security


EN 50155

The LTE router is designed according to the international standard EN 50155. Components have to meet the strictest environmental requirements, e.g. an extended temperature range. In addition, they must be resilient to shocks and vibrations.

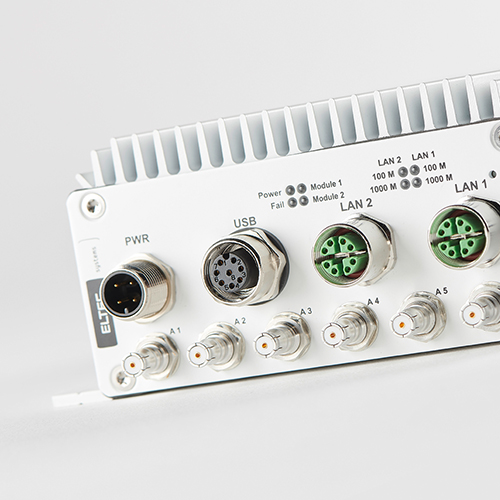

CyBox LTE 2 - LTE Router with LTE Cat 6 or IEEE 802.11ac and 3 x 3 MIMO

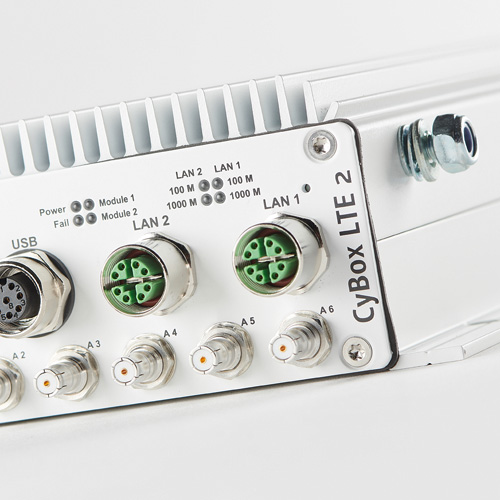

CyBox LTE 2 - LTE Router with LTE Cat 6 or IEEE 802.11ac and 3 x 3 MIMO
CyBox LTE 2 - LTE Router with LTE Cat 6 or IEEE 802.11ac and 3 x 3 MIMO

Further Technical Data

  • 2 Ethernet Interfaces with 1 Gbps + 1/2.5/10 Gbps
  • Integrated GPS receiver
  • USB port
  • Simple Network Management Protocol (SNMP)
  • QLS antenna connections
  • IP40 aluminium housing for wall mounting
  • Housing dimensions 105 × 55 × 205 mm
  • Weight up to 1350 g
  • Temperature range -40 °C to + 85°C

Software

  • Open source software OpenWrt
  • WAN manager for coordinating multiple LTE/WLAN connections
  • OpenVPN tunneling
  • Link Aggregation (LACP)
  • Quality of Service (QoS)
  • ARP filter - no man-in-the-middle attacks
  • Optional secure boot

LTE router for high-speed trains
LTE router for intercity trains
LTE router for trams
Not qualified for buses

Your Advantages

LTE

Stable and secure cellular connections for internet access and train-to-ground communication

Lifecycle Management

Every generation in the same footprint for scalability and long-term availability

Worldwide Use

Country-specific LTE/Wi-Fi standards for worldwide use in every type of train

GPS

Integrated GPS receiver for vehicle tracking

Load Balancing

Intelligent distribution of clients to access points and fair bandwidth allocation

Fast Roaming

Smooth and loss-free from access point to access point

256 Clients

Highest performance on smallest footprint: Up to 256 clients per access point

90+ Clients

Simultaneous, uninterrupted live video streaming for more than 90 clients

Made in Germany

Designed and manufactured in Germany


Variants

CYLTE-1062CYLTE-1052
CYLTE-1050
2 x LTE 2 x LTE 1 x LTE + 1 x Wi-Fi
LTE Cat 6 with 300 Mbps LTE Cat 6 with 300 Mbps LTE Cat 6 with 300 Mbps
- - IEEE 802.11ac with 1300 Mbps
1 + 1 Gigabit Ethernet 1 + 1 Gigabit Ethernet 1 + 1 Gigabit Ethernet
M12, X-coded M12, X-coded M12, X-coded
 Dual-Core CPU 1.2 MHz Dual-Core CPU 1.2 MHz Dual-Core CPU 1.2 MHz
 1 GB RAM 1 GB RAM 1 GB RAM
 128 MB Flash 128 MB Flash 128 MB Flash
24 - 110 VDC 24 - 110 VDC 24 - 110 VDC
- PoE PoE
Bypass Relay - -
GPS GPS GPS

Downloads


Accessories

  • Antennas
  • Adapters
  • Cables
  • Power supply

Evaluation Kit

Evaluation Kit for LTE Router CyBox LTE 2-W

LTE Router

CYLTE-1050

including all necessary accessories

  • Antennas
  • Adapters
  • Cabels
  • Power supply
