Hyrax-1000

Modular Gigabit Ethernet data logger with a choice of freely configurable interfaces and 5G/LTE/WLAN modems for monitoring in-vehicle sensor data in real time. Compliant with EN 50155.

Optional radio modules

5G/LTE | Wi-Fi

Fast 1 Gbps

1 Gbps

Modular design

Highly modular


Modular Computing Platform

Highly modular concept for flexible configuration of various expansion modules incl. high-performance CPU and memory unit up to the width of a 19" housing. The interface modules are pre-assembled units for a fast time-to-market.


Devices for data acquisition can be connected via serial interfaces as well as via Gigabit Ethernet. Optional expansion modules are CAN, MVB (ESD+, EMD), LTE CAT-7, Wi-Fi 11ac and future options are 5G, Wi-Fi 11ax, Digital-I/O and 4-Port Ethernet switch.

Multiple Interfaces


Multiple Mounting Options

The fanless and maintenance-free design offers various mounting options: DIN rail, wall-mount, 19" subrack mount.


For best connectivity data streams are transmitted via Gigabit Ethernet, Wi-Fi or mobile radio. With four SIM sockets per 5G/LTE modem.

5G/LTE | Wi-Fi
or
Ethernet


Various CPU options for scalable system performance with lowest heat dissipation. The Intel Apollo Lake CPU based on SMARC 2.0 standard is optimized for high data throughput and enables preprocessing and thus the reduction of data to be transferred. It's main memory also allows data to be buffered for several days.

Scalable CPU Power


SSD

SSD memory for long-term data storage of the log data without the need of any further external storage medium. The stand-alone system can also be used as a content server.


The integrated ultra-wide-range power supply is fully compliant with EN 50155, Class S2 and tolerates interruptions of up to 10 ms.

24 - 110 VDC


EN 50155

The Ethernet data logger is designed according to the international standard EN 50155. Components have to meet the strictest environmental requirements, e.g. an extended temperature range. In addition, they must be resilient to shocks and vibrations.

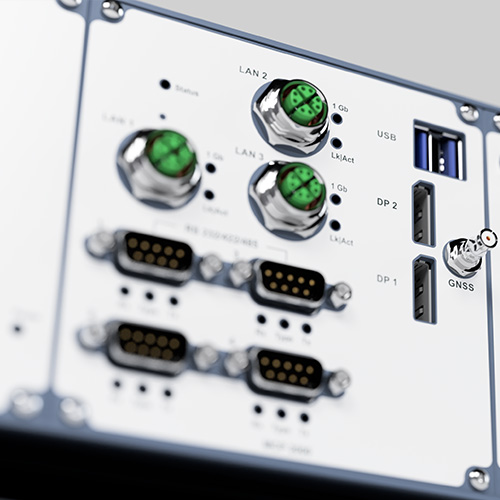

Data Logger Hyrax-1000 - Ethernet data logger with optional radio modules

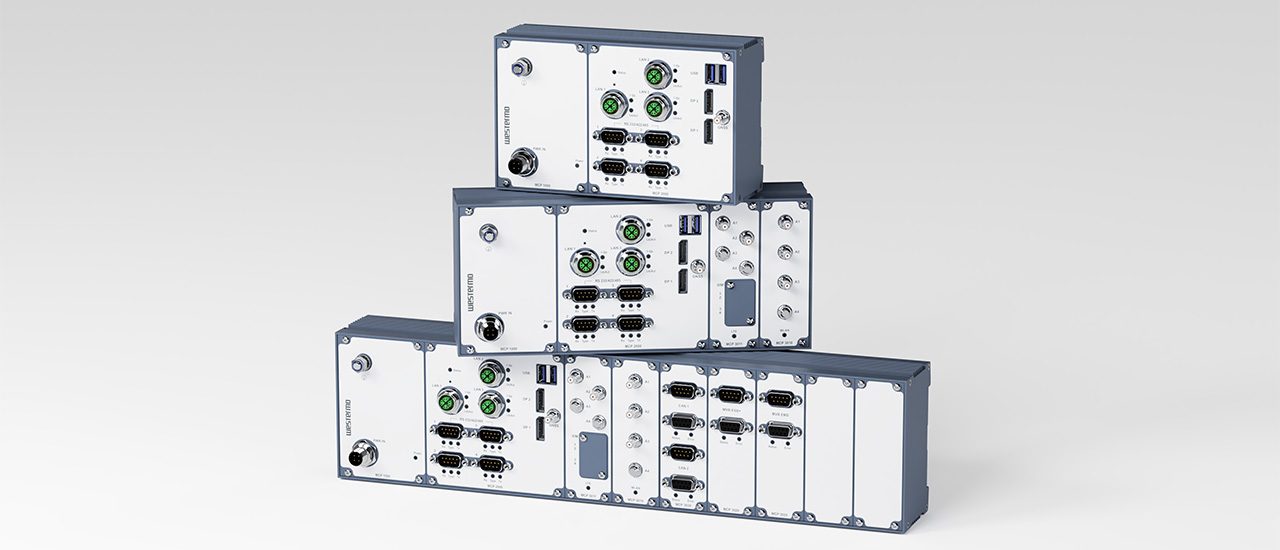

Data Logger Hyrax-1000 - Ethernet data logger with optional radio modules

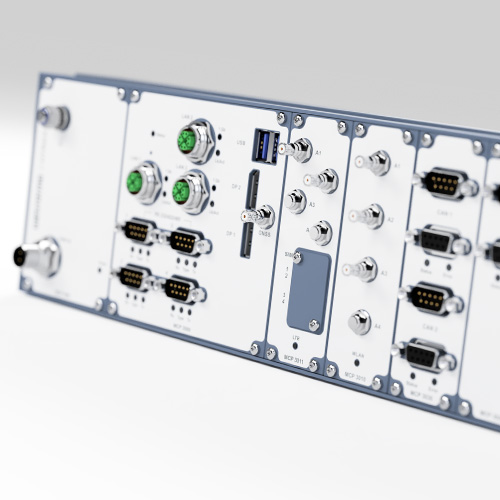

Data Logger Hyrax-1000 - Ethernet data logger with optional radio modules

Further Technical Data

  • 3 x Gigabit Ethernet
  • Optional 5G/LTE and Wi-Fi radio modules
  • 4 x RS232/422/485 (galvanically isolated)
  • 2 x USB 3.0
  • 2 x DisplayPort
  • GNSS interface
  • Robust IP40 housing for for DIN rail, wall-mount or 19" subrack mounting
  • Housing dimensions 249 mm x 112 mm x 63 mm
  • Weight 1900 - 3500 g depending on extension modules
  • Temperature range -40 °C to + 85°C

Software

  • Embedded Debian Linux

Data logger for high-speed trains
Data logger for intercity trains
Data logger for trams

Your Advantages

Future-proof

Intel CPU for scalable computing power

Connectivity

5G/LTE, Wi-Fi, or Gigabit Ethernet for the transmission of device data

GPS

Tracking and speed measurement for reliable information

Ruggedized

Small, compact IP40 housing with M12 plugs for extreme conditions

Worldwide Use

For worldwide use in every type of train

EN 50155

Railway-compliant, robust design

Made in Germany

Designed and manufactured in Germany


Variants

Hyrax-1570Hyrax-1510Hyrax-1500
3 x 1 Gbps 3 x 1 Gbps 3 x 1 Gbps
240 GB SSD 240 GB SSD 240 GB SSD
Dual-Core CPU 1.8 GHz Dual-Core CPU 1.8 GHz Dual-Core CPU 1.8 GHz
2 GB RAM 2 GB RAM 2 GB RAM
LTE CAT-7 LTE CAT-7 -
1 x Wi-Fi 5 1 x Wi-Fi 5 -
CAN - -
MVB ESD+, MVB EMD - -
4 x seriell/parallel 4 x seriell/parallel 4 x seriell/parallel
2 x USB, 2 x Display Port 2 x USB, 2 x Display Port 2 x USB, 2 x Display Port
GNSS GNSS GNSS
24 - 110 VDC 24 - 110 VDC 24 - 110 VDC
Rail PSU Rail PSU Rail PSU
6 x QLS 6 x QLS 1 x QLS

Downloads

Accessories

  • Antennas
  • Adapters
  • Cables
  • Power supply

Evaluation Kit

Evaluation kit for data logger Hyrax-1000

Data Logger

EVMCX-1000

including all necessary accessories

  • Antennas
  • Adapters
  • Cabels
  • Power supply
